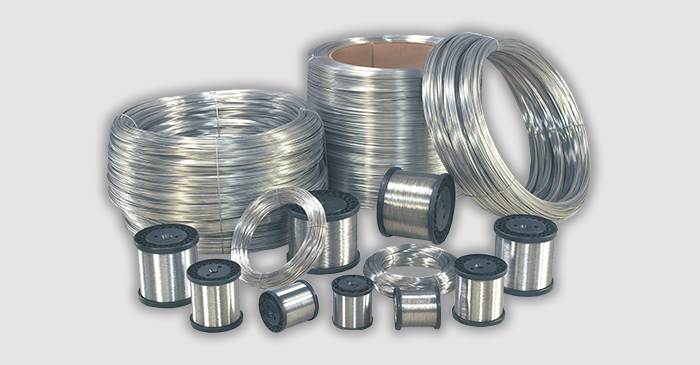

Nickel 200/201 Wires

Nickel 200/201 wires play a crucial role in industries like chemical processing, electronics, and aerospace, offering the combination of corrosion resistance, temperature stability, and electrical conductivity. The choice between Nickel 200 and Nickel 201 depends on specific purity requirements, with Nickel 201 offering the highest level of nickel purity.

Nickel 200 has excellent mechanical characteristics across a wide temperature range and outstanding resistance to many corrosives, especially hydroxides.Nickel 200 works best in reducing settings and exhibits good corrosion resistance in alkalis and acids. exceptional caustic alkali resistance up to the molten stage. The substance has excellent resistance to acid, alkaline, and neutral salt solutions, but an aggressive attack will occur in oxidising salt solutions. Can be used in temperatures as high as 550oC and is resistant to every dry gas at room temperature. It can also be used with dry chlorine and hydrogen chloride.

With qualities similar to Nickel 200 but less intergranular carbon to prevent embrittlement at high temperatures, Nickel 201 is a pure produced nickel with similar properties.It works best in reducing conditions and exhibits strong corrosion resistance in acids and alkalis. exceptional caustic alkali resistance up to the molten stage. The material has remarkable resistance in acidic, alkaline, and neutral salt solutions, but significant attack will occur in oxidising salt solutions.Useable at temperatures up to 550oC and resistant to all dry gases at room temperature in dry chlorine and hydrogen chloride.

Specifications

Material Grade: Nickel 200 or Nickel 201, both known for their high nickel purity.
Diameter Range: Available in various diameters to accommodate different applications.
Purity: Nickel 200 consists of a minimum of 99.0% nickel, while Nickel 201 has a minimum of 99.6% nickel, ensuring high purity.
Corrosion Resistance: Exceptional resistance to various corrosive environments, making them suitable for use in industries where corrosion is a concern.
Temperature Stability: These wires maintain their mechanical properties at elevated temperatures, making them suitable for high-temperature applications.
Electrical and Thermal Conductivity: Known for their excellent electrical and thermal conductivity, which is valuable in various electrical and heat transfer applications.
Standards: Compliance with industry standards such as ASTM B160 or ASTM B161, ensuring quality and consistency.

size range

Size – 0.20mm to 12mm
We supply hardness of wire (Soft, Quater Hard, Half Hard) according to customer requirements.

Material Certification and Traceability

At Satyam Overseas, we prioritize Material Certification and Traceability. Our materials, meeting ASTM and ASME standards, come with 3.1 Mill Test Certificates as a guarantee of compliance. Additionally, upon request, we provide 3.2 Mill Test Certificates for added assurance. Every material is clearly marked and accompanied by a corresponding certificate, meticulously linking markings to certification. This meticulous approach ensures complete accountability and unwavering reliability throughout our supply chain.

Chemical Composition

Nickel 200

	Nickel	Copper	Iron	Manganese	Carbon	Silicon	Sulfur
Min	99.0	–	–	–	–	–	–
Max	–	0.25	0.40	0.35	0.15	0.35	0.01

Nickel 201

	Nickel	Copper	Iron	Manganese	Carbon	Silicon	Sulfur
Min	99.0	–	–	–	–	–	–
Max	–	0.25	0.40	0.35	0.02	0.35	0.01

Physical Composition

Nickel 200

Density, lb/in 3	Density, g/cm 3	Melting Range, °F	Melting Range, °C	Specific Heat, Btu/lb•°F	Specific Heat, J/kg•°C	Curie Temperature, °F	Curie Temperature, °C
0.321	8.89	2615-2635	1435-1446	0.109	456	680	360

Nickel 201

Density, lb/in 3	Density, g/cm 3	Specific Heat, Btu/lb•°F	Specific Heat,J/kg•°C	Curie Temperature, °F	Curie Temperature, °C	Modulus of Elasticity (Tension), 103 ksi	Modulus of Elasticity (Tension), GPa
0.321	8.89	0.109	456	680	360	60	207

Designations & Standards

Forms	ASTM	ASME	DIN
Wire	-	-	17753
