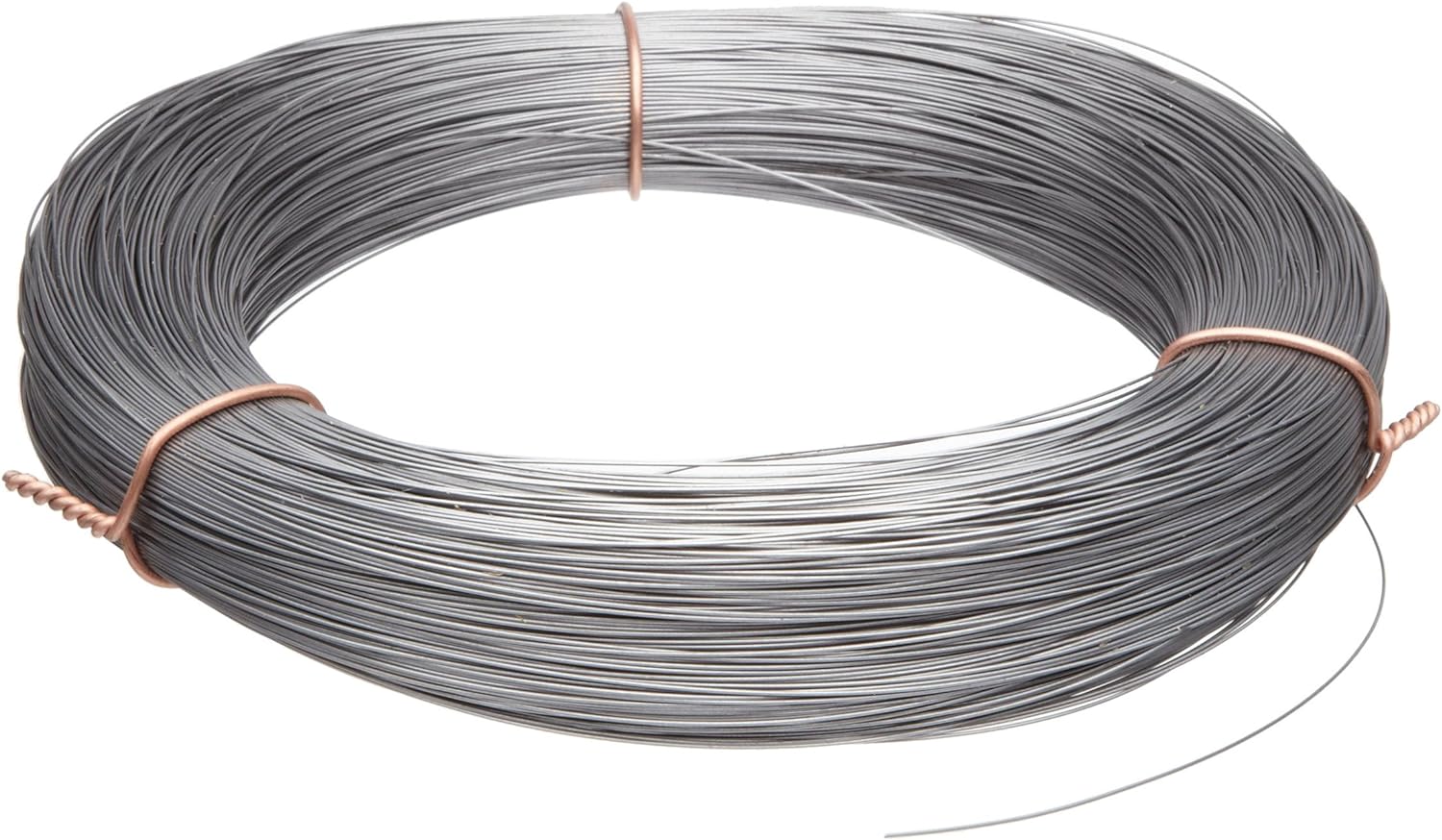

Inconel 600 Wires
Inconel 600 wires are commonly used in industries where their combination of corrosion resistance, high-temperature capability, and electrical conductivity is essential. Their versatility and reliability make them suitable for a wide range of critical applications, particularly in challenging environments.
Its high nickel content, a minimum of Ni 72 %, combined with its chromium content, provides users of Inconel 600 Wire a number of benefits. In strong oxidizing solutions like hot, concentrated nitric acid, Inconel 600 Coil Wire has poor resistance. The high chromium content of Inconel 600 Wire raises its oxidation resistance considerably above that of pure nickel, while its high nickel content provides good corrosion resistance under reducing conditions. Inconel 600 Wire can both hot formed and cold form using typical processes, and is also often used in vegetable and fatty acid vessels. Inconel 600 Wire is also used for furnace components, in food and chemical processing, nuclear engineering, and sparking electrodes. Chromium content in Alloy 600 Coiled Wire confers resistance to sulfur compounds and also provides resistance to oxidizing conditions at high temperatures or in corrosive solutions. The high nickel content in Alloy 600 Coil Wire enables it to retain considerable resistance under reducing conditions. Alloy 600 Wire is a nickel – chromium alloy with good oxidation resistance at high temperatures and resistance to chloride – ion stress – corrosion cracking, corrosion by high – purity water, and caustic corrosion. Alloy 600 Wire has exceptional Temperature Resistance and Corrosion Resistance as its excellent properties.
Specifications:
- Corrosion Resistance: Inconel 600 wires offer exceptional resistance to corrosion in various environments, including high-temperature oxidation and chloride-ion stress corrosion cracking.
- Temperature Capability: wires can operate effectively at elevated temperatures, making them suitable for high-temperature applications in industries such as aerospace, furnace components, and heat exchangers.
- Electrical Conductivity: Inconel 600 possesses good electrical conductivity, making it valuable in electrical and electronic applications.
- Mechanical Properties: Specifications for tensile strength, yield strength, and elongation ensure the material’s mechanical reliability, especially in demanding conditions.
- Standards: Compliance with industry standards, often specified under ASTM B166 for Inconel wires, ensures consistent quality and performance.
size range
We supply hardness of wire (Soft, Quater Hard, Half Hard) according to customer requirements.
Material Certification and Traceability
At Satyam Overseas, we prioritize Material Certification and Traceability. Our materials, meeting ASTM and ASME standards, come with 3.1 Mill Test Certificates as a guarantee of compliance. Additionally, upon request, we provide 3.2 Mill Test Certificates for added assurance. Every material is clearly marked and accompanied by a corresponding certificate, meticulously linking markings to certification. This meticulous approach ensures complete accountability and unwavering reliability throughout our supply chain.
Chemical Composition
| Nickel | Chromium | Iron | Carbon | Manganese | Sulfur | Silicon | Copper | |
|---|---|---|---|---|---|---|---|---|
| Min | 72.0 | 14.0 | 6.00 | – | – | – | - | |
| Max | – | 17.0 | 10.00 | 0.15 | 1.00 | 0.015 | 0.50 | 0.50 |
Physical Composition
| Density | 0.306 |
|---|---|
| Density,Mg/m3 | 8.47 |
| Melting Range, °F | 2470-2575 |
| Melting Range, °C | 1354-1413 |
| Specific Heat, Btu/lb-°F | 0.106 |
| Specific Heat,J/kg-°C | 444 |
| Electrical Resistivity, ohm-circ mil/ft | 620 |
| Electrical Resistivity, μΩ-m | 1.03 |
| Curie Temperature, °F | -192 |
| Curie Temperature, °C | -124 |
| Permeability at 200 oersted (15.9 kA/m) | 1.010 |
Designations & Standards
| Forms | ASTM | ASME | DIN |
|---|---|---|---|
| Wire | B 166 B 564 | SB 166 SB 564 | 17752 |
Differences between Inconel and Hastelloy
Inconel and Hastelloy are both nickel-chromium-molybdenum-based alloys. They are all corrosion-resistant and extremely strong metals. Hastelloy has greater molybdenum content than Inconel, although Inconel has a higher chromium concentration. This sets them apart in terms of corrosion resistance in different situations.
