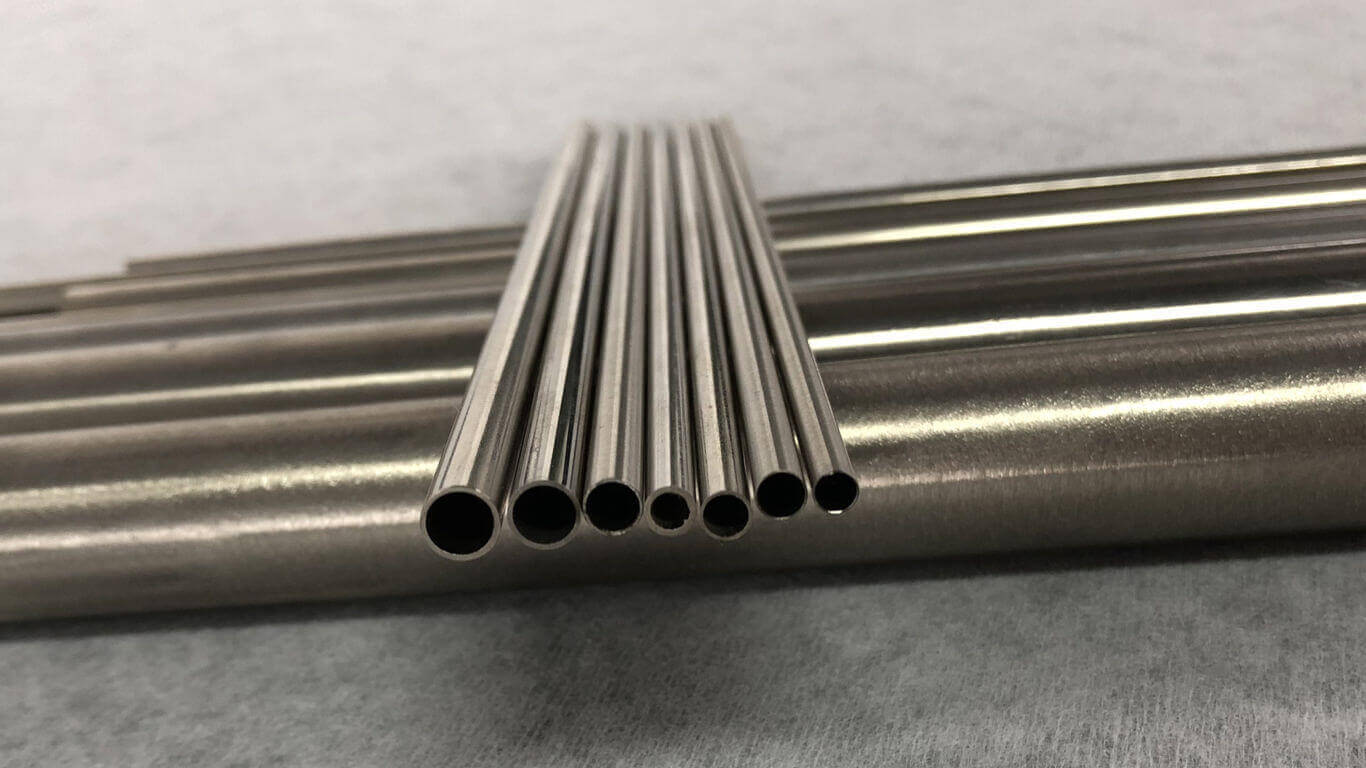

Inconel 600 Pipes & Tubes
Inconel 600 pipes and tubes are commonly used in industries such as chemical processing, aerospace, and power generation, where their combination of corrosion resistance, high-temperature capability, and thermal conductivity is essential. Their versatility and reliability make them suitable for various critical applications.
High quality Inconel 600 Pipes and Tubes, ASTM B163 Inconel 600 Seamless Pipe . These pipes are highly resistant to heat and corrosion. Hardened by cold work, our range of Inconel pipes has additional strength. The Inconel 600 Seamless Tubes UNS N06600 ASTM B163 are manufactured to sustain very high pressure and product warranty. These pipes & tubes are widely used in various applications industry. We also offer these pipes & Tubes in available different size,grades, specification & thickness as per the clients requirements.
Specifications:
- Size Range:
- Size – 1/4 inch NB to 15 inch NB
- Schedule – SCH5, SCH10, SCH40, STD, SCH80, SCH160
- Type – Seamless / ERW / Welded / Fabricated
- Length – Single Random, Double Random & Cut Length.
- End – Plain End, Beveled End, Treaded
- Corrosion Resistance: Inconel 600 pipes and tubes offer exceptional resistance to corrosion in various environments, including high-temperature oxidation and chloride-ion stress corrosion cracking.
- Temperature Capability: These pipes and tubes can operate effectively at elevated temperatures, making them suitable for high-temperature applications, often in the range of 2000°F (1093°C).
- Thermal Conductivity: Inconel 600 possesses excellent thermal conductivity, which can be advantageous in heat exchangers and other heat transfer applications.
- Mechanical Properties: Specifications for tensile strength, yield strength, and elongation ensure the material’s mechanical reliability, especially in demanding conditions.
- Standards: Compliance with industry standards, such as ASTM B167 for Inconel pipes and ASTM B516 for Inconel tubes, ensures consistent quality and performance.
Material Certification and Traceability
At Satyam Overseas, we prioritize Material Certification and Traceability. Our materials, meeting ASTM and ASME standards, come with 3.1 Mill Test Certificates as a guarantee of compliance. Additionally, upon request, we provide 3.2 Mill Test Certificates for added assurance. Every material is clearly marked and accompanied by a corresponding certificate, meticulously linking markings to certification. This meticulous approach ensures complete accountability and unwavering reliability throughout our supply chain.
Chemical Composition
| Nickel | Chromium | Iron | Carbon | Manganese | Sulfur | Silicon | Copper | |
|---|---|---|---|---|---|---|---|---|
| Min | 72.0 | 14.0 | 6.00 | – | – | – | - | |
| Max | – | 17.0 | 10.00 | 0.15 | 1.00 | 0.015 | 0.50 | 0.50 |
Physical Composition
| Density | 0.306 |
|---|---|
| Density,Mg/m3 | 8.47 |
| Melting Range, °F | 2470-2575 |
| Melting Range, °C | 1354-1413 |
| Specific Heat, Btu/lb-°F | 0.106 |
| Specific Heat,J/kg-°C | 444 |
| Electrical Resistivity, ohm-circ mil/ft | 620 |
| Electrical Resistivity, μΩ-m | 1.03 |
| Curie Temperature, °F | -192 |
| Curie Temperature, °C | -124 |
| Permeability at 200 oersted (15.9 kA/m) | 1.010 |
Designations & Standards
| Forms | ASTM | ASME | DIN |
|---|---|---|---|
| Pipe and Tube | B 167 B 163 B 516 B 517 B 751 B 775 B 829 | SB 163 SB 516 SB 517 SB 751 SB 775 SB 829 | 17751 |
Differences between Inconel and Hastelloy
Inconel and Hastelloy are both nickel-chromium-molybdenum-based alloys. They are all corrosion-resistant and extremely strong metals. Hastelloy has greater molybdenum content than Inconel, although Inconel has a higher chromium concentration. This sets them apart in terms of corrosion resistance in different situations.
