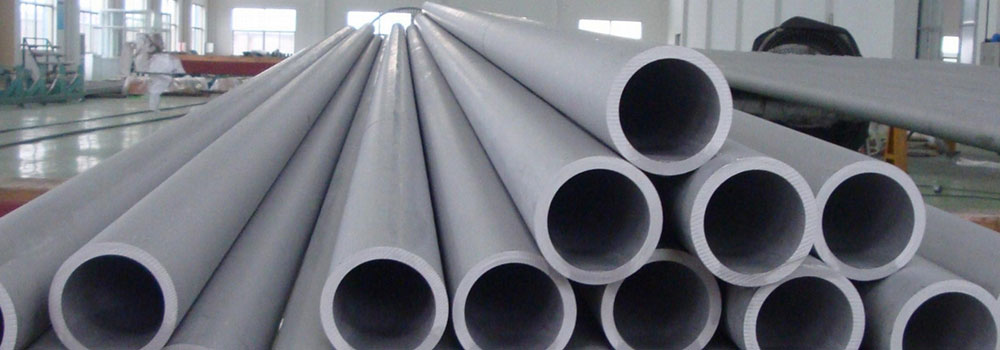

Monel 400 Pipes & Tubes
Monel 400 pipes and tubes find widespread use in industries like marine, chemical processing, and oil and gas, where corrosion resistance, mechanical strength, and reliability in diverse temperature ranges are essential. Their adaptability to various conditions makes them a reliable choice for critical applications.
Monel 400 Pipes is an alloy of Nickel and Copper which contains 67% of Nickel and 23% of Copper. This alloy is suitable to use in Pipe manufacturing. With qualities like excellent corrosion resistance, high strength, and good weldability, Monel 400 is supporting well in every application. It offers excellent resistance to stress-corrosion cracking, and this resistance property of Monel 400 makes it suitable to use in marine applications and non-oxidizing chloride solutions.
Specifications
- Material Grade: Monel 400, a nickel-copper alloy with specific composition percentages of nickel, copper, and minor elements.
- Size Range:
- Size – 1/4 inch NB to 15 inch NB
- Schedule – SCH5, SCH10, SCH40, STD, SCH80, SCH160
- Type – Seamless / ERW / Welded / Fabricated
- Length – Single Random, Double Random & Cut Length.
- End – Plain End, Beveled End, Treaded
- Corrosion Resistance: Monel 400 exhibits exceptional resistance to corrosion in diverse environments, including seawater, acids, and alkaline solutions.
- Mechanical Properties: Specifications for tensile strength, yield strength, and elongation, ensuring the material’s mechanical reliability.
- Temperature Range: Monel 400 pipes and tubes maintain their properties at a wide range of temperatures, making them suitable for both low and elevated-temperature applications.
- Conductivity: Known for excellent thermal and electrical conductivity, which can be advantageous in heat exchangers and electrical applications.
- Standards: Compliance with industry standards such as ASTM B165 for Monel pipes and ASTM B163 for Monel tubes, ensuring consistent quality and performance.
Material Certification and Traceability
At Satyam Overseas, we prioritize Material Certification and Traceability. Our materials, meeting ASTM and ASME standards, come with 3.1 Mill Test Certificates as a guarantee of compliance. Additionally, upon request, we provide 3.2 Mill Test Certificates for added assurance. Every material is clearly marked and accompanied by a corresponding certificate, meticulously linking markings to certification. This meticulous approach ensures complete accountability and unwavering reliability throughout our supply chain.
Chemical Composition
| Nickel | Carbon | Manganese | Iron | Sulfur | Silicon | Copper | |
|---|---|---|---|---|---|---|---|
| Min | 63.0 | – | – | – | – | – | – |
| Max | – | 0.3 | 2.0 | 2.5 | 0.024 | 0.5 | 28.0-34.0 |
Physical Composition
| Density, g/cm 3 | Density, lb/in 3 | Melting Range, °F | Melting Range, °C | Tension | Compression | Torsion | Poisson’s Ratio | Curie Temperature, °F | Curie Temperature, °C |
|---|---|---|---|---|---|---|---|---|---|
| 8.80 | 0.318 | 2370-2460 | 1300-1350 | 26.0 | 26.0 | 9.5 | 0.32 | 70-120 | 21-49 |
Designations & Standards
| Forms | ASTM | ASME | DIN |
|---|---|---|---|
| Pipe and Tube | B 163 B 165 B 725 B 730 B 751 B 775 B 829 | B 829 SB 165 SB 725 SB 730 SB 751 SB 829 | 17751 |
Differences between Monel and Hastelloy:
Monel and Hastelloy are two different types of nickel-copper alloys. Monel is more corrosion resistant, but it is less heat-conductive. It also has a lower melting point. This makes it perfect for high-temperature uses such as stove tops and gas pipes. But if you want a material with a higher melting point, you would be better off choosing Hastelloy because it can withstand very high temperatures without losing any strength or corrosion resistance. Monel is a nickel-copper alloy that resists corrosion in acidic environments. It can be used in piping, valves, and other fluid transfer components.
Monel parts are also good for use in high-temperature applications. Hastelloy is an alloy of nickel, chromium, and molybdenum. It provides the right mix of both tensile strength and corrosion resistance for most industrial applications. Monel is a family of iron-nickel alloys containing nickel and copper, called cupronickel. Monel metal is nonmagnetic and resistant to corrosion in seawater. Hastelloy is a family of nickel-based superalloys, with a percentage of cobalt, titanium, iron, and molybdenum making up the composition. Hastelloy has a much higher nickel content than Monel. Monel is a nickel-copper alloy, and Hastelloy is a series of alloys containing nickel and several other metals. Monel has a low voltage coefficient and is resistant to most corrosive environments. Whereas Hastelloy is designed for applications in high-temperature, oxidizing environments.
