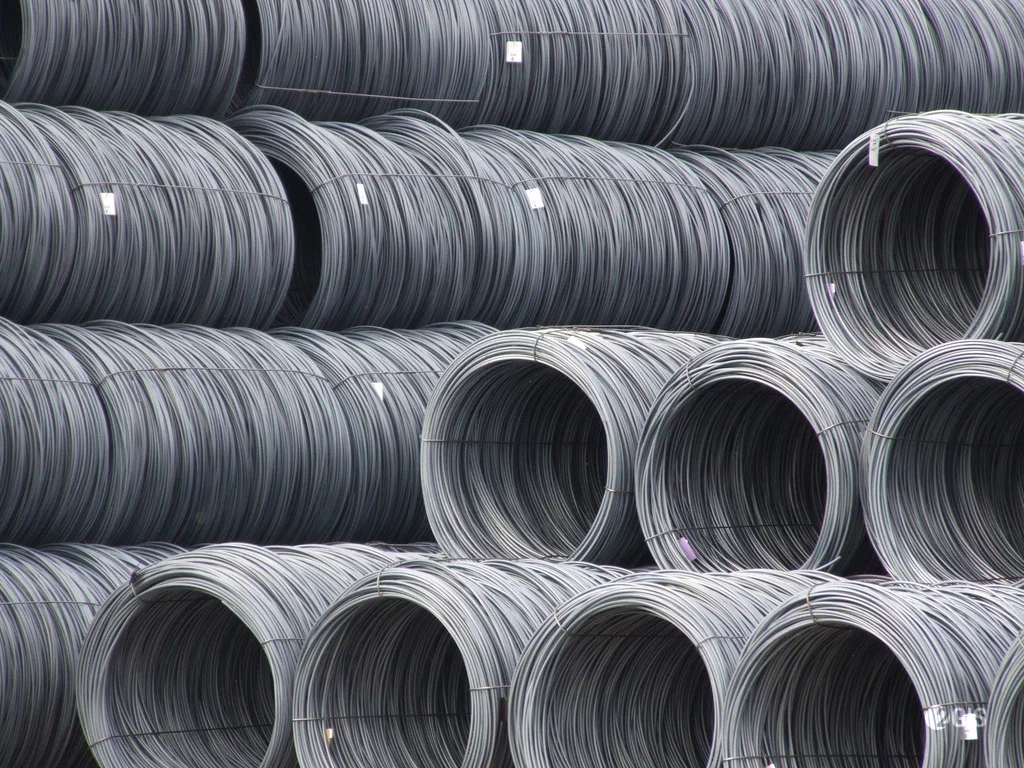

Inconel 625 Wires
Inconel 625 wires are wire products made from Inconel 625, a high-performance nickel-based alloy known for its exceptional corrosion resistance, high-temperature strength, and versatility. These wires are widely used in various industries for applications that require resistance to harsh environments and extreme conditions. Here are some key specifications and details for Inconel 625 wires:
Specifications:
- Surface Finish: Inconel 625 wires can be supplied with different surface finishes, including bright, matte, or polished, based on the requirements of the application.
- Heat Treatment: Inconel 625 wires are typically supplied in the solution-annealed condition, ensuring they have the desired corrosion resistance and mechanical properties.
- Tolerance: Tolerances for Inconel 625 wires are typically in accordance with relevant manufacturing standards and project specifications.
- Heat Treatment: Inconel 625 round bars are typically supplied in the solution-annealed condition, ensuring they have the desired corrosion resistance and mechanical properties.
- Tolerance: Tolerances for Inconel 625 round bars are typically in accordance with relevant manufacturing standards and project specifications.
- Testing and Certification: These wires may undergo various tests, including tensile testing, surface condition inspection, and dimensional checks, to ensure quality and compliance with industry standards. Material test certificates (MTC) and quality certifications are often provided.
Inconel 625 wires find applications in various industries, including aerospace, chemical processing, marine engineering, and more. They are used in the production of components like springs, gaskets, fasteners, and electrical connectors, where corrosion resistance and high-temperature strength are essential.
For specific details and custom requirements regarding Inconel 625 wires, it’s advisable to consult the manufacturer or supplier to ensure they meet the desired specifications for your particular application.
size range
We supply hardness of wire (Soft, Quater Hard, Half Hard) according to customer requirements.
Material Certification and Traceability
At Satyam Overseas, we prioritize Material Certification and Traceability. Our materials, meeting ASTM and ASME standards, come with 3.1 Mill Test Certificates as a guarantee of compliance. Additionally, upon request, we provide 3.2 Mill Test Certificates for added assurance. Every material is clearly marked and accompanied by a corresponding certificate, meticulously linking markings to certification. This meticulous approach ensures complete accountability and unwavering reliability throughout our supply chain.
Chemical Composition
| Ni | Cr | Fe | AI | C | Mn | S | Si | Cu | P | Ti | Mo | Nb+Tb | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Min | 58 | 21 | - | 1 | 0.03 | - | - | - | - | - | - | 8 | 3.2 |
| Max | 71 | 23 | 5 | 0.03 | 1 | 0.5 | 0.015 | 0.4 | 0.5 | 0.01 | 0.4 | 10 | 3.8 |
Physical Composition
| Density | Melting range | Relative magnetic permeability at 20 °C (68 °F) | Curie temperature |
|---|---|---|---|
| 8.47 g/cm3 (0.306 lb/in3 ) | 1,290-1,350 °C (2,354-2,462 °F) | 1.003 (Maximum) | -196 °C (Maximum) (-320.8 °F) |
Designations & Standards
| Forms | ASTM | ASME | DIN |
|---|---|---|---|
| Wire | B 166 | - | 17742 17753 |
Differences between Inconel and Hastelloy
Inconel and Hastelloy are both nickel-chromium-molybdenum-based alloys. They are all corrosion-resistant and extremely strong metals. Hastelloy has greater molybdenum content than Inconel, although Inconel has a higher chromium concentration. This sets them apart in terms of corrosion resistance in different situations.
