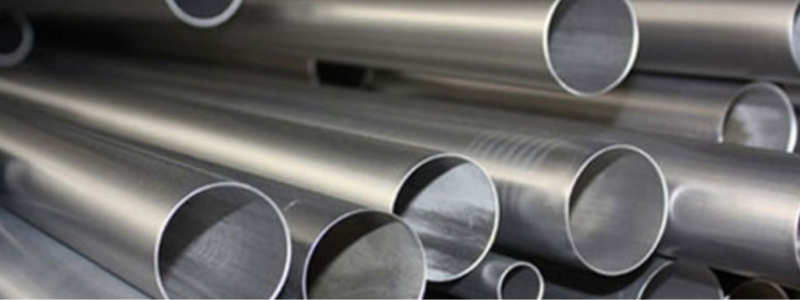

Incoloy 825 Pipes & Tubes

These pipes and tubes are designed as per the norms of international standards so as to meet requirements made by global customers. Here, we carry different type of ferrous and non-ferrous grades that are prominent for different kinds of industrial applications. These pipes and tubes are manufactured by using the precise machineries and latest equipment..

These pipes and tubes are stocked by us in different designations, standards, specifications, custom dimensions and demands made by our esteemed customers. We are using only tested and quality raw materials for manufacturing of pipes and tubes for 100% reliability and workability..

Composition of Incoloy 825 grade makes it an utmost option for the severe applications.

Incoloy 825 (UNS N08825) is from the family of austenitic grade with the composition of iron, chromium, and nickel with a small addition of molybdenum, titanium, and copper. These pipes and tubes are designed to provide exceptional resistance to a number of corrosive media even in the oxidizing and reducing environments. It has the nickel content makes it resistive to chloride stress corrosion cracking. The combination of molybdenum and copper offer improve corrosion resistance in reducing environments when compared to its standard grade.

Specifications:

Incoloy 825 Pipes:

• Incoloy 825 pipes are widely used in industries where corrosion resistance is critical, such as chemical processing, petrochemical, and marine applications.
• These pipes are known for their ability to withstand corrosive substances like sulfuric acid, phosphoric acid, and seawater.
• Incoloy 825 pipes come in various sizes and can be used for transporting both liquids and gases in challenging environments.

Incoloy 825 Tubes:

• Incoloy 825 tubes are utilized in heat exchangers, boilers, and other high-temperature applications.
• They provide excellent resistance to pitting and crevice corrosion, making them a suitable choice for environments where corrosion is a concern.
• Incoloy 825 tubes are available in different dimensions to meet specific project requirements.

Incoloy 825 is particularly well-regarded for its resistance to both reducing and oxidizing acids, stress-corrosion cracking, and excellent mechanical properties at elevated temperatures. It’s often used in aggressive chemical processing industries and in equipment exposed to corrosive media. When selecting Incoloy 825 pipes and tubes for your specific application, it’s essential to consider the corrosive environment and the required performance characteristics to ensure the longevity and effectiveness of the materials.

Incoloy 825 Pipes Specifications:

• Standard: ASTM B423/ASME SB423
• Dimensions: ANSI/ASME B36.19, B36.10
• Size Range: 1/4 inch NB to 15 inch NB
• Outer Diameter (OD): 6.00 mm OD up to 914.4 mm OD
• Wall Thickness (WT): 0.3mm – 50 mm
• Length: Single Random, Double Random, Cut Length (up to 12 meters)
• Ends: Plain End, Beveled End, Treaded

Incoloy 825 Tubes Specifications:

• Standard: ASTM B163/ASME SB163
• Dimensions: ASTM, ASME, and API
• Size Range: 1/2″ OD – 12″ OD, Guage: 25 SWG – 10 SWG
• Outer Diameter (OD): 3.00 mm – 219.10 mm
• Wall Thickness (WT): 0.40 mm – 12.70 mm
• Length: Single Random, Double Random, Cut Length (up to 17 meters)
• Ends: Plain End, Beveled End, Treaded

Material Certification and Traceability

At Satyam Overseas, we prioritize Material Certification and Traceability. Our materials, meeting ASTM and ASME standards, come with 3.1 Mill Test Certificates as a guarantee of compliance. Additionally, upon request, we provide 3.2 Mill Test Certificates for added assurance. Every material is clearly marked and accompanied by a corresponding certificate, meticulously linking markings to certification. This meticulous approach ensures complete accountability and unwavering reliability throughout our supply chain.

Chemical Composition

Physical Composition
