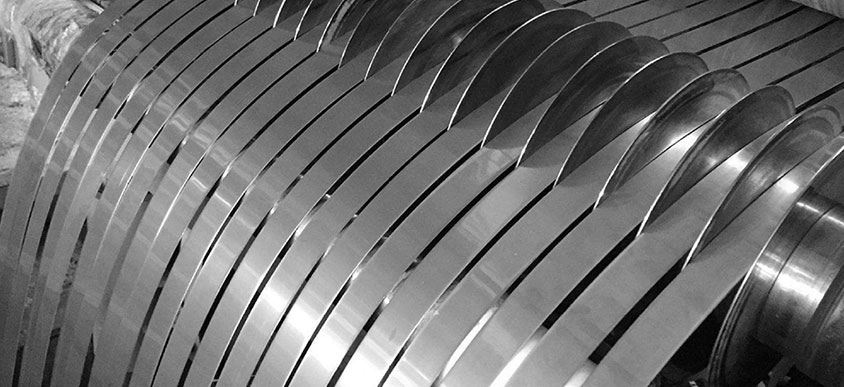

Inconel 600 Strips/Shims
Inconel 600 strips and shims are widely used in industries where their combination of corrosion resistance, high-temperature capability, and mechanical reliability is essential. Their versatility makes them suitable for a range of critical applications, including gaskets, shims, and precise spacing components.
Specifications:
- Size Range:
- Width – up to 500mm
- Thickness – up to 100 microns.
- Size – 0.20mm to 1mm thickness
- Corrosion Resistance: Inconel 600 strips and shims offer exceptional resistance to corrosion in various environments, including high-temperature oxidation and chloride-ion stress corrosion cracking.
- Temperature Capability:These materials can operate effectively at elevated temperatures, making them suitable for high-temperature applications in industries such as aerospace, furnace components, and heat exchangers.
- Mechanical Properties: Specifications for tensile strength, yield strength, and elongation ensure the material’s mechanical reliability, especially in demanding conditions.
- Standards: Compliance with industry standards, often specified under ASTM B168 for Inconel strips and shims, ensures consistent quality and performance.
Material Certification and Traceability
At Satyam Overseas, we prioritize Material Certification and Traceability. Our materials, meeting ASTM and ASME standards, come with 3.1 Mill Test Certificates as a guarantee of compliance. Additionally, upon request, we provide 3.2 Mill Test Certificates for added assurance. Every material is clearly marked and accompanied by a corresponding certificate, meticulously linking markings to certification. This meticulous approach ensures complete accountability and unwavering reliability throughout our supply chain.
Chemical Composition
| Nickel | Chromium | Iron | Carbon | Manganese | Sulfur | Silicon | Copper | |
|---|---|---|---|---|---|---|---|---|
| Min | 72.0 | 14.0 | 6.00 | – | – | – | - | |
| Max | – | 17.0 | 10.00 | 0.15 | 1.00 | 0.015 | 0.50 | 0.50 |
Physical Composition
| Density | 0.306 |
|---|---|
| Density,Mg/m3 | 8.47 |
| Melting Range, °F | 2470-2575 |
| Melting Range, °C | 1354-1413 |
| Specific Heat, Btu/lb-°F | 0.106 |
| Specific Heat,J/kg-°C | 444 |
| Electrical Resistivity, ohm-circ mil/ft | 620 |
| Electrical Resistivity, μΩ-m | 1.03 |
| Curie Temperature, °F | -192 |
| Curie Temperature, °C | -124 |
| Permeability at 200 oersted (15.9 kA/m) | 1.010 |
Designations & Standards
| Forms | ASTM | ASME | DIN |
|---|---|---|---|
| Strip | B 168 B 906 | SB 168 SB 906 | 17750 |
Differences between Inconel and Hastelloy
Inconel and Hastelloy are both nickel-chromium-molybdenum-based alloys. They are all corrosion-resistant and extremely strong metals. Hastelloy has greater molybdenum content than Inconel, although Inconel has a higher chromium concentration. This sets them apart in terms of corrosion resistance in different situations.
