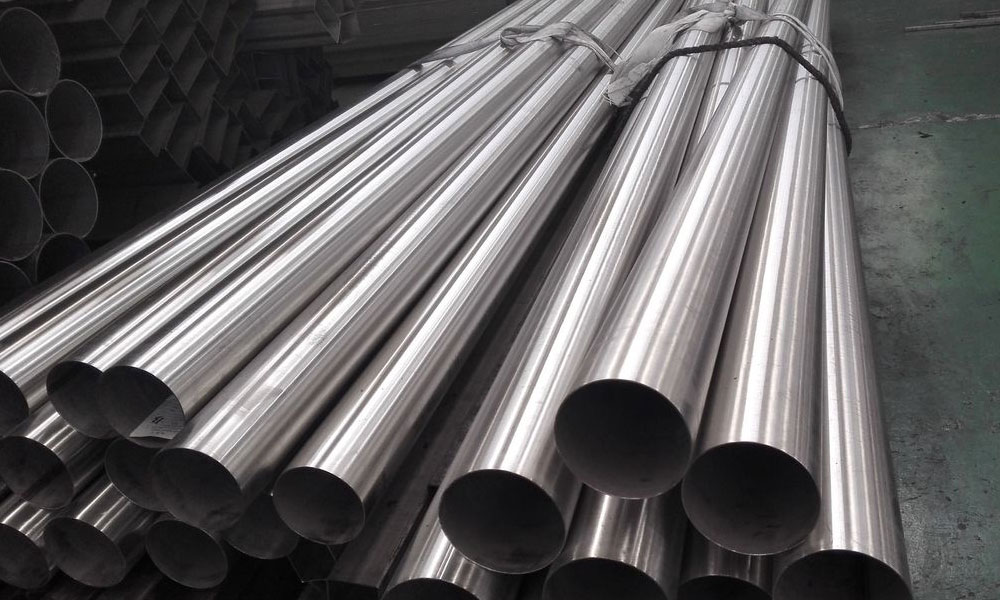

Inconel 601 Pipes & Tubes
Inconel 601 is a high-nickel alloy known for its exceptional corrosion resistance and high-temperature strength. Inconel 601 pipes and tubes are widely used in various industries, including aerospace, chemical processing, heat treatment, and more, where they are subjected to harsh and demanding environments.
Inconel 601 Pipes are made of a superalloy that contains chromium, iron, nickel, copper, manganese, and silicon. This unique combination of elements gives Inconel 601 pipes superior strength and durability compared to other materials.
Specifications:
- Size Range:
- Size – 1/4 inch NB to 15 inch NB
- Schedule – SCH5, SCH10, SCH40, STD, SCH80, SCH160
- Type – Seamless / ERW / Welded / Fabricated
- Length – Single Random, Double Random & Cut Length.
- End – Plain End, Beveled End, Treaded
- Corrosion Resistance: Inconel 601 pipes and tubes offer exceptional resistance to high-temperature oxidation, as well as resistance to corrosive environments, making them suitable for applications in heat treatment, furnace components, and chemical processing.
- High Temperature Capability:These pipes and tubes can operate effectively at elevated temperatures, often up to 2200°F (1204°C), making them valuable in applications where heat resistance is crucial.
- Mechanical Properties: Specifications for tensile strength, yield strength, and elongation ensure the material’s mechanical reliability, especially at high temperatures.
- Thermal Conductivity: Inconel 601 possesses good thermal conductivity, a property that is advantageous in heat exchangers and other heat transfer applications.
- Standards: Compliance with industry standards, often specified under ASTM B167 for Inconel pipes and ASTM B516 for Inconel tubes, ensures consistent quality and performance.
Material Certification and Traceability
At Satyam Overseas, we prioritize Material Certification and Traceability. Our materials, meeting ASTM and ASME standards, come with 3.1 Mill Test Certificates as a guarantee of compliance. Additionally, upon request, we provide 3.2 Mill Test Certificates for added assurance. Every material is clearly marked and accompanied by a corresponding certificate, meticulously linking markings to certification. This meticulous approach ensures complete accountability and unwavering reliability throughout our supply chain.
Chemical Composition
| Ni | Cr | Fe | AI | C | Mn | S | Si | Cu | |
|---|---|---|---|---|---|---|---|---|---|
| Min | 58 | 21 | - | 1 | 0.03 | - | - | - | - |
| Max | 63 | 25 | 18 | 1.7 | 0.1 | 1 | 0.015 | 0.5 | 0.5 |
Physical Composition
| Density | Melting range | Relative magnetic permeability at 20 °C (68 °F) | Curie temperature |
|---|---|---|---|
| 8.05 g/cm3 (0.29 lb/in3 ) | 1,330-1,370 °C (2,426-2,498 °F) | 1.01 (Maximum) | -196 °C (Maximum) (-320.8 °F) |
Differences between Inconel and Hastelloy
Inconel and Hastelloy are both nickel-chromium-molybdenum-based alloys. They are all corrosion-resistant and extremely strong metals. Hastelloy has greater molybdenum content than Inconel, although Inconel has a higher chromium concentration. This sets them apart in terms of corrosion resistance in different situations.
