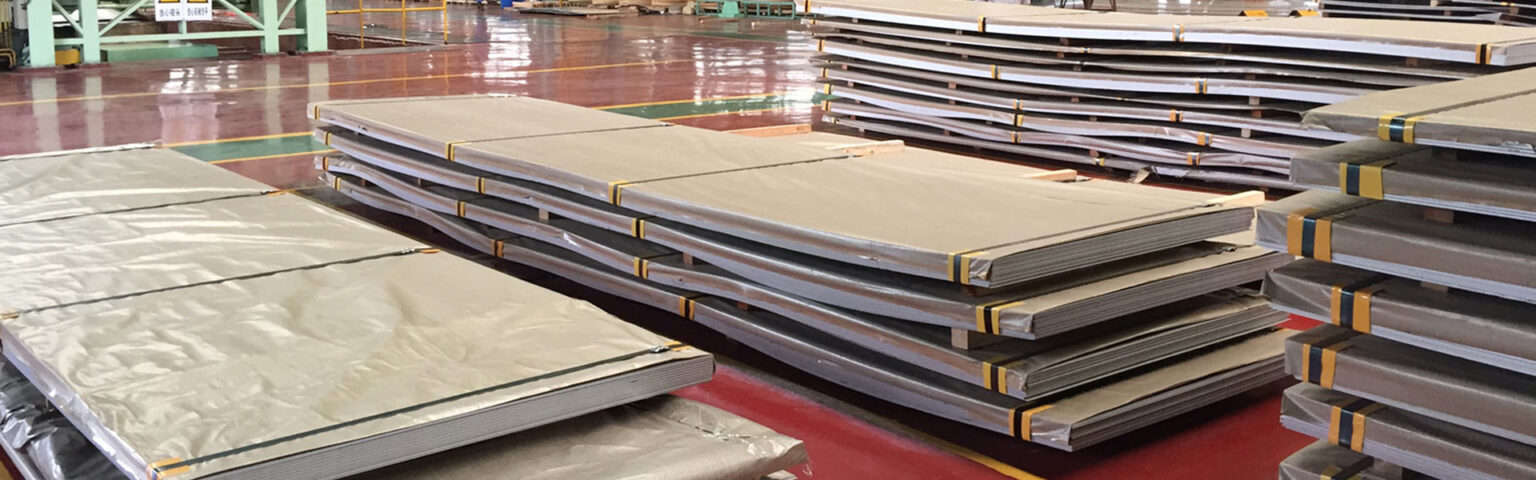

Inconel 600 Sheets & Plates
Inconel 600 Sheets & Plates are commonly used in industries such as chemical processing, aerospace, and power generation, where their combination of corrosion resistance, high-temperature capability, and thermal conductivity is essential. Their versatility and reliability make them suitable for a wide range of critical applications.
As per the customer’s given specifications, we manufacture these Plates. We guarantee to deliver top quality Plates within the decided time. We offer world-class and innovative products to our esteem clients. By using the highest quality raw material for the production of Inconel 600 Sheet Plate, we ensure the best quality of Plates.
Quality testing is a vital stage of our products, which ensures the excellence of Plates. Right from the selection of material till the final dispatch of Inconel 600 Sheet Plate, we check quality. The well-checked Plates are performing well in all environmental situations. Our high-grade Inconel 600 Sheet Plate has resistance to different corrosive agents and high temperatures. These Plates have strength, durability, and also offer properties like anti-cracking, anti-corrosion even in oxidizing agents.
- Material Grade: Inconel 600, a nickel-chromium alloy with specific composition percentages of nickel, chromium, and minor elements..
- Size Range:
- Thickness – 1mm to 25mm
- Width – standard – 1219mm, 1250mm, 1500mm, 2000mm wide
- Length – 2500, 3000, 6000mm long
- Corrosion Resistance: Inconel 600 plates and sheets offer exceptional resistance to corrosion in various environments, including high-temperature oxidation and chloride-ion stress corrosion cracking.
- Temperature Capability: These plates and sheets can operate effectively at elevated temperatures, making them suitable for high-temperature applications, often in the range of 2000°F (1093°C).
- Thermal Conductivity: Inconel 600 possesses excellent thermal conductivity, which can be advantageous in heat exchangers and other heat transfer applications.
- Mechanical Properties: Specifications for tensile strength, yield strength, and elongation ensure the material’s mechanical reliability, especially in demanding conditions.
- Standards: Compliance with industry standards, often specified under ASTM B168, ensures consistent quality and performance.
Material Certification and Traceability
At Satyam Overseas, we prioritize Material Certification and Traceability. Our materials, meeting ASTM and ASME standards, come with 3.1 Mill Test Certificates as a guarantee of compliance. Additionally, upon request, we provide 3.2 Mill Test Certificates for added assurance. Every material is clearly marked and accompanied by a corresponding certificate, meticulously linking markings to certification. This meticulous approach ensures complete accountability and unwavering reliability throughout our supply chain.
Chemical Composition
| Nickel | Chromium | Iron | Carbon | Manganese | Sulfur | Silicon | Copper | |
|---|---|---|---|---|---|---|---|---|
| Min | 72.0 | 14.0 | 6.00 | – | – | – | - | |
| Max | – | 17.0 | 10.00 | 0.15 | 1.00 | 0.015 | 0.50 | 0.50 |
Physical Composition
| Density | 0.306 |
|---|---|
| Density,Mg/m3 | 8.47 |
| Melting Range, °F | 2470-2575 |
| Melting Range, °C | 1354-1413 |
| Specific Heat, Btu/lb-°F | 0.106 |
| Specific Heat,J/kg-°C | 444 |
| Electrical Resistivity, ohm-circ mil/ft | 620 |
| Electrical Resistivity, μΩ-m | 1.03 |
| Curie Temperature, °F | -192 |
| Curie Temperature, °C | -124 |
| Permeability at 200 oersted (15.9 kA/m) | 1.010 |
Designations & Standards
| Forms | ASTM | ASME | DIN |
|---|---|---|---|
| Plate, Sheet and Strip | B 168 B 906 | SB 168 SB 906 | 17750 |
Differences between Inconel and Hastelloy
Inconel and Hastelloy are both nickel-chromium-molybdenum-based alloys. They are all corrosion-resistant and extremely strong metals. Hastelloy has greater molybdenum content than Inconel, although Inconel has a higher chromium concentration. This sets them apart in terms of corrosion resistance in different situations.
