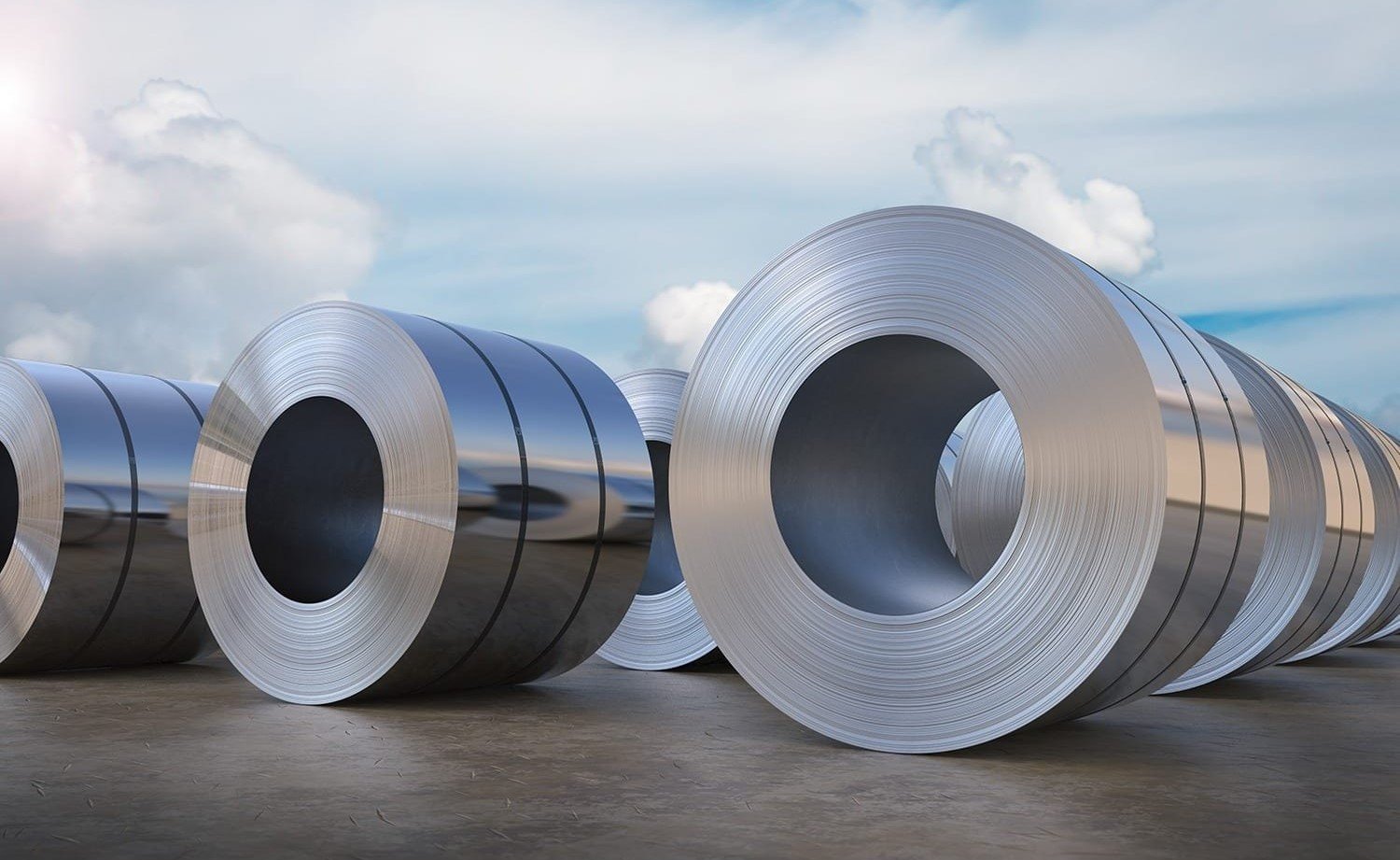

Inconel 625 Strips/Shims
Inconel 625 strips and shims are thin, flat, and narrow pieces of material made from Inconel 625, a high-performance nickel-based alloy known for its exceptional corrosion resistance, high-temperature strength, and versatility. These strips and shims are commonly used in various industries for applications that require precise spacing, sealing, or structural support. Here are some key specifications and details for Inconel 625 strips and shims:
Specifications:
- Width – up to 500mm
- Thickness – up to 100 microns.
- Size – 0.20mm to 1mm thickness
- The width and length of Inconel 625 strips and shims can vary based on the intended use and project requirements.
- Inconel 625 strips and shims can be supplied with different surface finishes, such as bright or matte, based on the requirements of the application.
- Inconel 625 strips and shims are typically supplied in the solution-annealed condition, ensuring they have the desired corrosion resistance and mechanical properties.
- Tolerances for Inconel 625 strips and shims are typically in accordance with relevant manufacturing standards and project specifications.
- These strips and shims may undergo various tests, such as thickness measurement, surface condition inspection, and dimensional checks, to ensure quality and compliance with industry standards. Material test certificates (MTC) and quality certifications are often provided.
Size Range:
Width and Length:
Surface Finish:
Heat Treatment:
Tolerance:
Testing and Certification:
Material Certification and Traceability
At Satyam Overseas, we prioritize Material Certification and Traceability. Our materials, meeting ASTM and ASME standards, come with 3.1 Mill Test Certificates as a guarantee of compliance. Additionally, upon request, we provide 3.2 Mill Test Certificates for added assurance. Every material is clearly marked and accompanied by a corresponding certificate, meticulously linking markings to certification. This meticulous approach ensures complete accountability and unwavering reliability throughout our supply chain.
Chemical Composition
| Ni | Cr | Fe | AI | C | Mn | S | Si | Cu | P | Ti | Mo | Nb+Tb | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Min | 58 | 21 | - | 1 | 0.03 | - | - | - | - | - | - | 8 | 3.2 |
| Max | 71 | 23 | 5 | 0.03 | 1 | 0.5 | 0.015 | 0.4 | 0.5 | 0.01 | 0.4 | 10 | 3.8 |
Physical Composition
| Density | Melting range | Relative magnetic permeability at 20 °C (68 °F) | Curie temperature |
|---|---|---|---|
| 8.47 g/cm3 (0.306 lb/in3 ) | 1,290-1,350 °C (2,354-2,462 °F) | 1.003 (Maximum) | -196 °C (Maximum) (-320.8 °F) |
Designations & Standards
| Forms | ASTM | ASME | DIN |
|---|---|---|---|
| Sheet, plate | B 168 | SB 168 | 17742 17750 |
Differences between Inconel and Hastelloy
Inconel and Hastelloy are both nickel-chromium-molybdenum-based alloys. They are all corrosion-resistant and extremely strong metals. Hastelloy has greater molybdenum content than Inconel, although Inconel has a higher chromium concentration. This sets them apart in terms of corrosion resistance in different situations.
